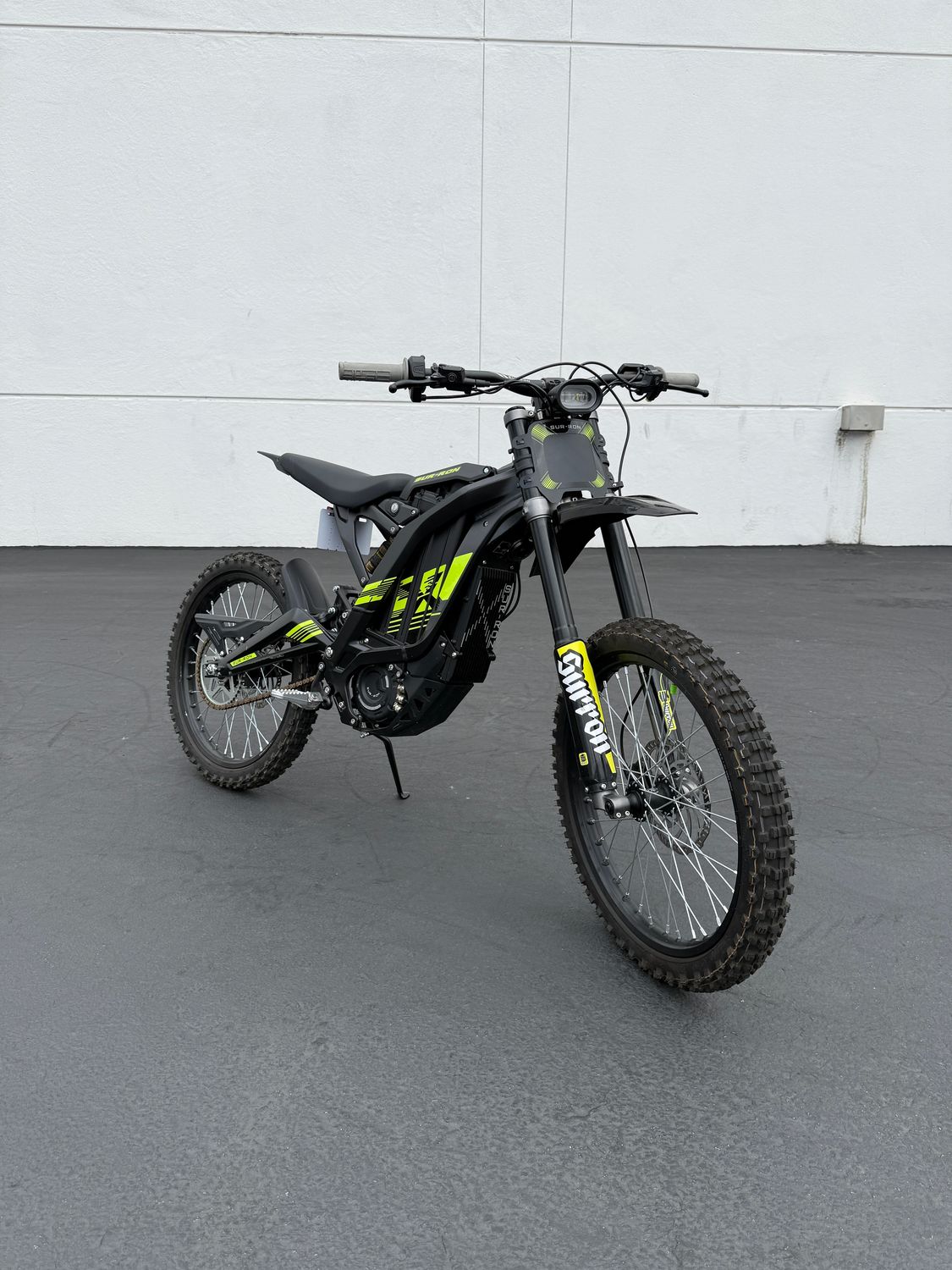

Powerful yet nimble, with a climbing ability of over 45°, the SUR-RON X offers hours of near-silent fun with a range of 20 to 60 miles per charge, depending on Eco or Sport Mode. It charges in about 3 hours using a 10A charger.
Note: This bike is sold for off-road use only. It is speed and power limited to comply with federal, state, and local laws. Please do not bypass this restriction or modify it to go faster. The buyer takes full responsibility for the proper use of this product, which may or may not conform to all applicable laws in the region it is ridden.
Motor Specifications
- Motor Type | PMSM
- Mounting Position | Mid
- Weight / Motor External Diameter | 7.0kg / 180mm
- Motor Axial Length | 130mm
- Peak Efficiency | 95.60%
- Cooling Method | Air-Cooled
Controller Specifications
- Controller Type | X Version Sine Wave
- Dimensions | 240mm x 110mm x 50mm
- Peak Efficiency | 98.50%
- Power Modes | Eco and Sport
Motor Power System
- Rated Voltage | 60V (DC)
- Rated Torque / Peak Torque | 10.2Nm / 39.00Nm
- Motor Shaft Output Torque @ 1000RPM | 35.40Nm
- Rated Rotation Speed | 4300rpm
- Peak Efficiency | 97.8%
- Range of Efficiency (≥80%) | 1.4Nm - 21.5Nm
Transmission
- Gear Ratio | 1:7.6
- Transmission | Primary Belt & 420 Drive Chain
- Belt Brand & Model | German Continental Brand, 8M CXA
Electrical Components
- Horn | European Standard Horn
- Battery | 60V 32A Lithium Battery with 176 Panasonic Cells
- Battery Life Time | 500 Cycles (capacity reduces step by step)
- Battery Charge Level | Integrated Battery LCD Display
- Charger | 10A
- Charging Time | 2.5-3.5 Hours
- USB Connection | USB-2.1 A Single Socket
- Speedometer | LCD Digital Speedometer
- LED Headlight & Rear Light | Yes
Frame Details
- Chassis - Swing Arm Material | No. 6061 T4 & T6 Aluminium Alloy
- Chassis Construction Method | Forged by 6000 Tons of Pressure
- Chassis Surface & Colour Processing | Anodic Oxidation
- Front Suspension | Inverted Suspension Fork with 8" Travel
- Rear Shock Absorber | DNM TR Suspension Link System
- Wheel Type & Size | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs
- Tire Size | Front/Rear 70/100-19 CST
- Top Speed | Varies depending upon load and gearing
- Net Weight | 47kg plus battery
- Max Load | 100kg (15.75 Stone)
- Max Climb | 45°
- Rear Sprocket | 48T
- Side Stand | Yes with kill switch
- Vehicle Dimensions | 1870mm x 780mm x 1040mm
- Min. Ground Clearance | 270mm
- Wheelbase | 1260mm
- Seat Height | 84 to 88cm
