Sur Ron Light Bee X
$4 399.00
In stock: 2 available
Product Details

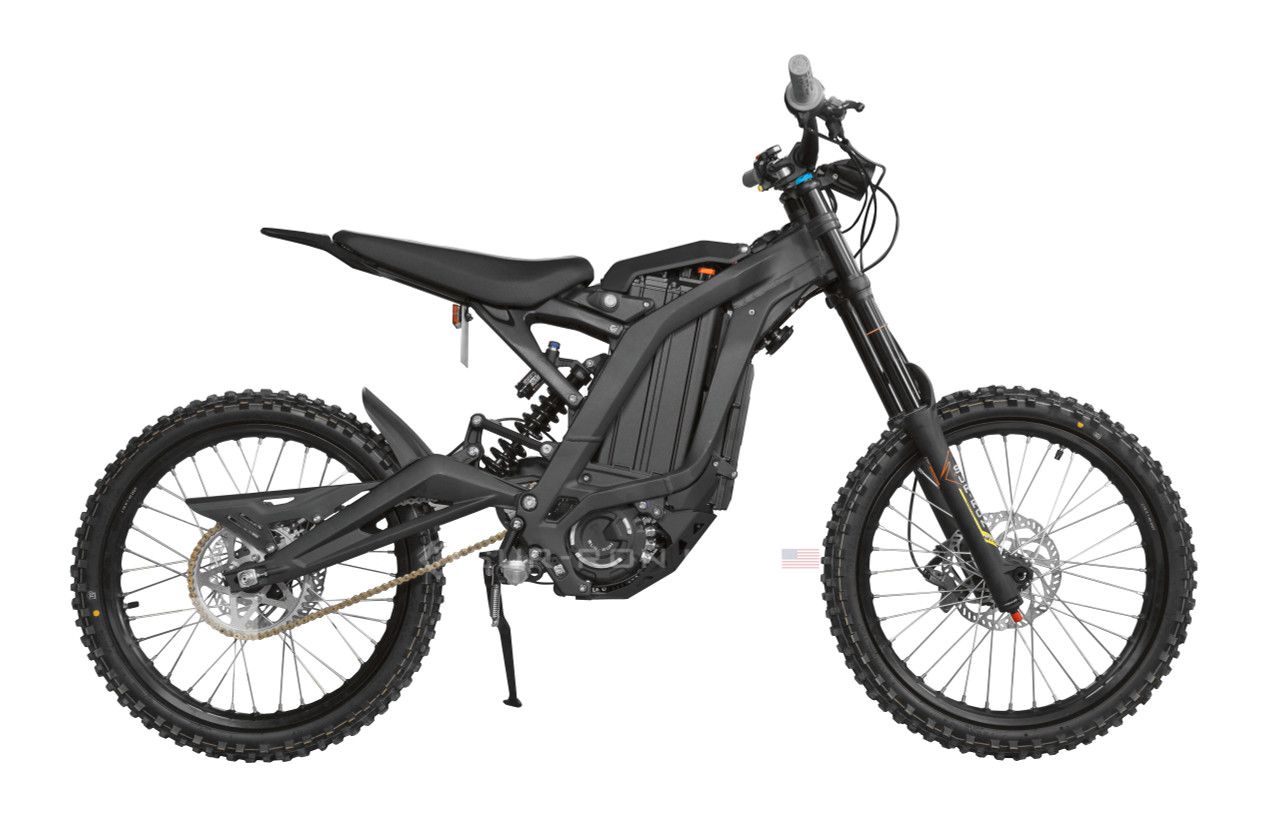

Electric Light Bee SUR-RON X
The Electric Light Bee SUR-RON X packs a ton of fun for all terrain riding. With 60V and more peak power from a removable Panasonic Lithium ion battery pack, this bike combines a forged lightweight alloy frame and hi-spec components to deliver an exhilarating ride. Equipped with 4 Piston Hydraulic Disc Brakes on both the front and rear, and an LCD dash with a USB charger point, it’s built for convenience and control.
Powerful yet nimble, with a climbing ability of over 45°, the SUR-RON X offers hours of near-silent fun with a range of 20 to 60 miles per charge, depending on Eco or Sport Mode. It charges in about 3 hours using a 10A charger.
Motor Specifications
- Motor Type | PMSM
- Mounting Position | Mid
- Weight / Motor External Diameter | 7.0kg / 180mm
- Motor Axial Length | 130mm
- Peak Efficiency | 95.60%
- Cooling Method | Air-Cooled
Controller Specifications
- Controller Type | X Version Sine Wave
- Dimensions | 240mm x 110mm x 50mm
- Peak Efficiency | 98.50%
- Power Modes | Eco and Sport
Motor Power System
- Rated Voltage | 60V (DC)
- Rated Torque / Peak Torque | 10.2Nm / 39.00Nm
- Motor Shaft Output Torque @ 1000RPM | 35.40Nm
- Rated Rotation Speed | 4300rpm
- Peak Efficiency | 97.8%
- Range of Efficiency (≥80%) | 1.4Nm - 21.5Nm
Transmission
- Gear Ratio | 1:7.6
- Transmission | Primary Belt & 420 Drive Chain
- Belt Brand & Model | German Continental Brand, 8M CXA
Electrical Components
- Horn | European Standard Horn
- Battery | 60V 32A Lithium Battery with 176 Panasonic Cells
- Battery Life Time | 500 Cycles (capacity reduces step by step)
- Battery Charge Level | Integrated Battery LCD Display
- Charger | 10A
- Charging Time | 2.5-3.5 Hours
- USB Connection | USB-2.1 A Single Socket
- Speedometer | LCD Digital Speedometer
- LED Headlight & Rear Light | Yes
Frame Details
- Chassis - Swing Arm Material | No. 6061 T4 & T6 Aluminium Alloy
- Chassis Construction Method | Forged by 6000 Tons of Pressure
- Chassis Surface & Colour Processing | Anodic Oxidation
- Front Suspension | Inverted Suspension Fork with 8" Travel
- Rear Shock Absorber | DNM TR Suspension Link System
- Wheel Type & Size | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs
- Tire Size | Front/Rear 70/100-19 CST
- Top Speed | Varies depending upon load and gearing
- Net Weight | 47kg plus battery
- Max Load | 100kg (15.75 Stone)
- Max Climb | 45°
- Rear Sprocket | 48T
- Side Stand | Yes with kill switch
- Vehicle Dimensions | 1870mm x 780mm x 1040mm
- Min. Ground Clearance | 270mm
- Wheelbase | 1260mm
- Seat Height | 84 to 88cm
