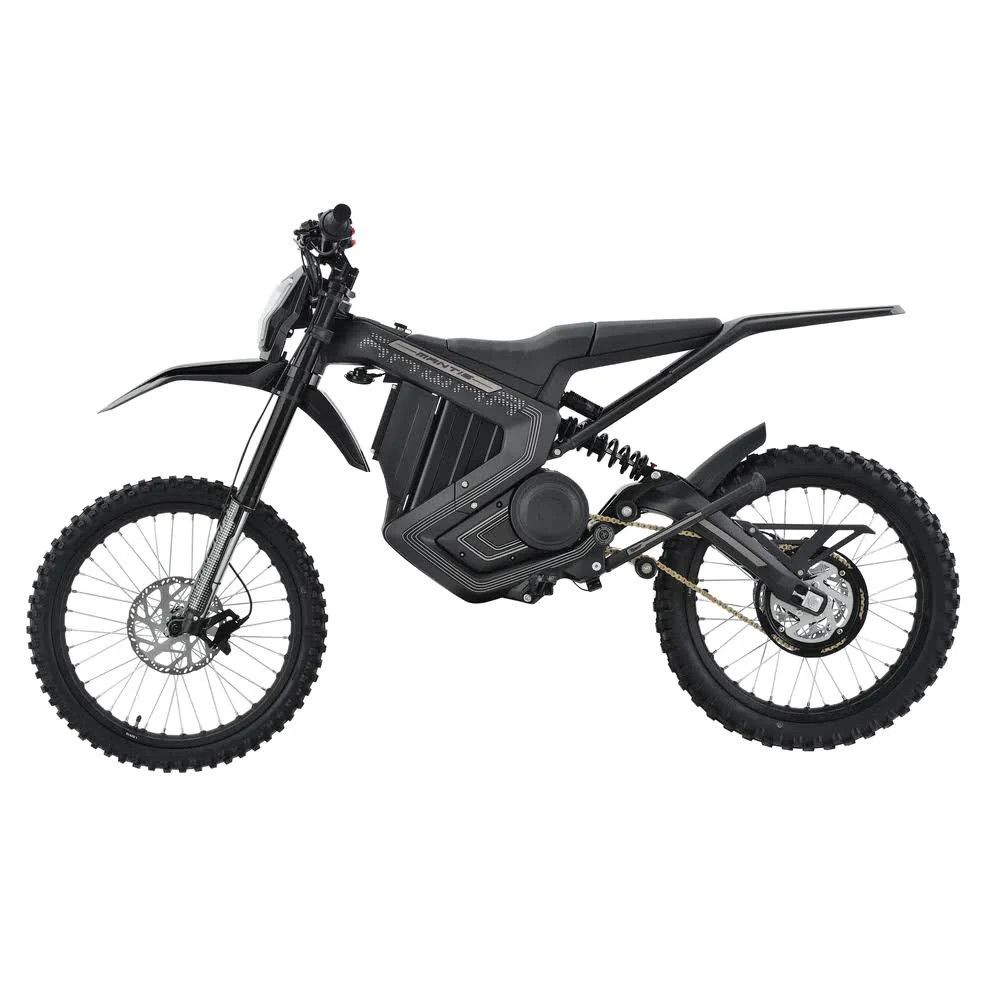

Rawrr Mantis All Terrain 72V
$4 499.00
Sold out
Color
Sold out
Product Details
DEMOLISH THE TRAILS IN STYLE
The largest, most comfortable bike in our lineup. Perfect for long trails, and can accommodate larger riders.
The 72V Rawrr Mantis Electric All-Terrain eMoto is the ultimate choice for adventurers and thrill-seekers who want to conquer any terrain easily. With its high-performance features and advanced technology, this bike is designed to take places you never thought possible.
The Mantis is larger and more comfortable than the competition, yet provides serious performance. This means that your Mantis is ready to shred the trails straight from the factory. The larger frame and longer suspension travel means that it stays comfortable for longer. The bigger size also means that the Mantis can accommodate big and tall riders.
Performance Metrics
- Range | 75 Miles (Eco Mode)
- 0-30 MPH | 2.9 Seconds
- Top Speed | 54 MPH
General Specifications
- Length | 76.20 inches
- Height | 47.25 inches
- Width | 31.30 inches
- Ground Clearance | 12.20 inches
- Wheelbase | 50.80 inches
- Seat Height | 34 inches
- Vehicle Weight (With Battery) | 130 lbs / 165 lbs
- Front Fork Stroke | 7.90 inches
- Rear Shock Absorber Stroke | 3.00 inches
- Tire Size (Front) | 70/100
- Tire Size (Rear) | 80/100
- Brake Type | Hydraulic Disc Brake
- Controller Type | Mantis FOC Controller
- Max Payload | 265 lbs
- Front/Back Disc Brake | 203mm
- Top Speed | 54 MPH
- Max Torque for Driving Wheel | 459 Nm
- Energy Recovery | EABS Brake
Battery & Charging
- Battery Type | Lithium Ion
- Battery Capacity | 72V 30Ah 2160Wh
- Range | 75 Miles (Eco mode, 15 mph)
- Charging Time | 4-6 hours
- Charger Input Voltage | AC 110/220V
Motor Specifications
- Motor Type | PMSM
- Regular Motor Power | 5000W
- Max Motor Power | 9500W
- Regular Torque | 10 Nm
- Max Torque | 50 Nm
- Motor Rotation Speed | 5100 RPM
- Max Motor Rotation Speed | 6200 RPM
- Motor Efficiency | 94%
- Harness IP Rating | IPX67
- Electrical IP Rating | IP56
- Climbing Ability | 50°+
- Cooling Method | Air-Cooled
- Insulation Class | H/180℃
